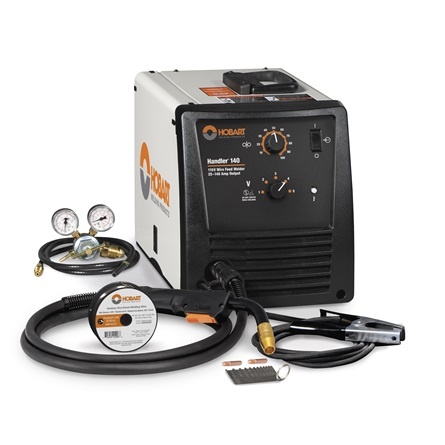

Hobart Handler® 140 MIG Welder

Description Excellent arc performance Smooth, stable arc on all thicknesses allows you the best arc possible. Quick Select drive roll Less of your time consumed in setup by offering three grooves – two for different size solid wire and a third for flux-cored wire. Weighs only 57 pounds Easier to transport: increased ability to weld where you need to weld. Self- resetting thermal overload protection Protects power transformer from thermal overload to provide you maximum reliability. Industrial cast aluminum wire drive system Durable wire feed provides you professional performance. Five-position voltage control Five voltage ranges allow you to fine-tune the arc. Convenient polarity changeover Easier and quicker for you to change polarity between solid or tubular wire. Sloped control panel Increased visibility so you can make adjustments more easily. Self-resetting motor protection Protects wire feed system from overload, you won’t need to change or reset the circuit breaker. PROCESSES Flux Cored (FCAW) MIG (GMAW) Title Handler® 140 MIG Welder Material Thickness Mild Steel 24.00 ga – 1/4 in. Weldable Metals Steel Stainless Steel Aluminum Input Voltage 110/115/120 V Input Phase 1-Phase Input Hz 60 Hz Current Type DC Rated Output 90 A @ 20% duty cycle Max Open Circuit Voltage 28 VDC Amperage Range 25 A – 140 A Wire Feed Speed 40 IPM 700 IPM Weld Output CV Net Width 10.625 in Net Height 12.375 in Net Length 19.5 in Net Weight 57 lbs Warranty 3 Years CERTIFICATIONS Comfortable 10 ft. (3 m) HR-100 gun Owner’s manual with installation, operation and maintenance guidelines. 10 ft. (3 m) work cable with clamp Built-in gas solenoid valve and dual-gauge regulator with gas hose Spool hub assembly accommodates 4 or 8 in. spools Sample spool of .030 in. (0.8mm) self-shielding flux-cored wire .030 in. (0.8mm) contact tips Quick Select™ drive roll for .024 in. (0.6mm) or .030/.035 in. (08/.9 mm) solid wire, and .030/.035 in. (0.8/0.9 mm) flux-cored wire Power cord with plug Welding guide and material thickness gauge NOT INCLUDED Shielding gas and safety equipment not included. Related
